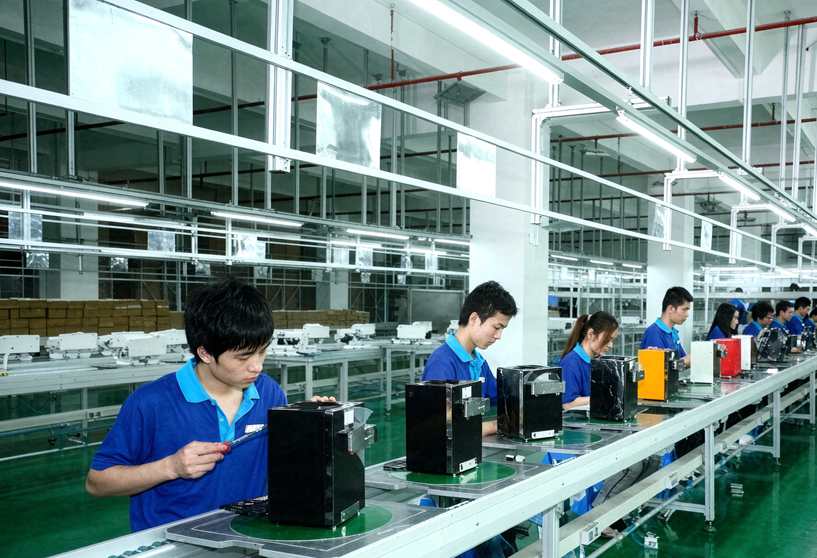

water purifier assembly line

This water purifier assembly line is a dedicated water purifier pipeline and production line for water purification equipment manufacturing. It is designed for complete assembly of household and commercial water purifiers, compatible with under-sink RO water purifiers, ultrafiltration machines and desktop water filters. It covers full production procedures including pre-assembly of filter housings, filter elements, booster pumps, solenoid valves, pipe connection, electrical wiring, leakage inspection, function testing and finished product offloading. It serves water purifier manufacturers and smart drinking equipment factories for standardized mass production.

The whole water purifier production line adopts mature double-speed chain conveyor structure with tooling pallets as load-bearing units, meeting the lightweight conveying demand of water purifier assembly. The line automatically completes workpiece transportation, precise positioning, station buffering and sequential transfer. Each workstation works independently and interlocks as a whole. The conveying speed can be adjusted flexibly according to production capacity. This water purifier assembly line supports mixed production of multiple models without modifying main frame, suitable for multi-variety, small & medium batch production. Each workstation is fitted with rotatable tooling pallet, operators can rotate the machine shell freely for convenient assembly of pipes and electrical parts on side and rear, solving operation limitations of fixed workbench, reducing pipe connection errors and improving assembly efficiency.

The line frame adopts aluminum alloy profile structure, light weight and easy to install, stable for long time continuous operation. Lighting system is installed above each station, with reserved space for work instruction boards. Multiple emergency stop buttons and audible & visual alarm devices are equipped, with overload protection, jam protection and safety interlock. The workshop uses green anti-static floor, with organized material delivery routes to meet 5S management.

The line is equipped with industrial PLC centralized control system and touch screen terminal. It supports full line start-stop, individual workstation control, beat adjustment, real-time status monitoring and fault diagnosis. The system records workpiece transfer and process data to realize full assembly traceability. It can locate faults like pallet jamming or positioning error for quick maintenance and reduce downtime.

Compared with discrete fixed bench assembly, this water purifier assembly line realizes continuous flow production. Workers are assigned fixed workstations and single process, cutting redundant movement and workpiece handling, lowering labor intensity. Refined process division and unified standards reduce pipe misconnection, missing parts and wiring mistakes, improving finished product yield. Compact layout allows pre-assembly, main assembly, pipe installation, leakage test and final inspection within limited workshop space.

This water purifier production line is mainly for household water purifier assembly and supports mixed production of different sizes of water filter units. With modular split design, it is easy to install and commission with low maintenance cost. Customers can expand workstations and add leakage test stations, torque tools or aging test benches for capacity expansion and process upgrade. It is stable and practical dedicated assembly line for water purification equipment manufacturers.

Core Equipment Parameters Applicable workpiece weight: 3KG–25KG Compatible products: household RO water purifier, ultrafiltration water filter, desktop drinking water machine Adjustable conveying speed: 0.2–2.5m/min Positioning accuracy: ±0.5mm Rotatable work pallet at each station PLC centralized control, full line fault self-check Supports 24h continuous operation, multi-model mixed production
