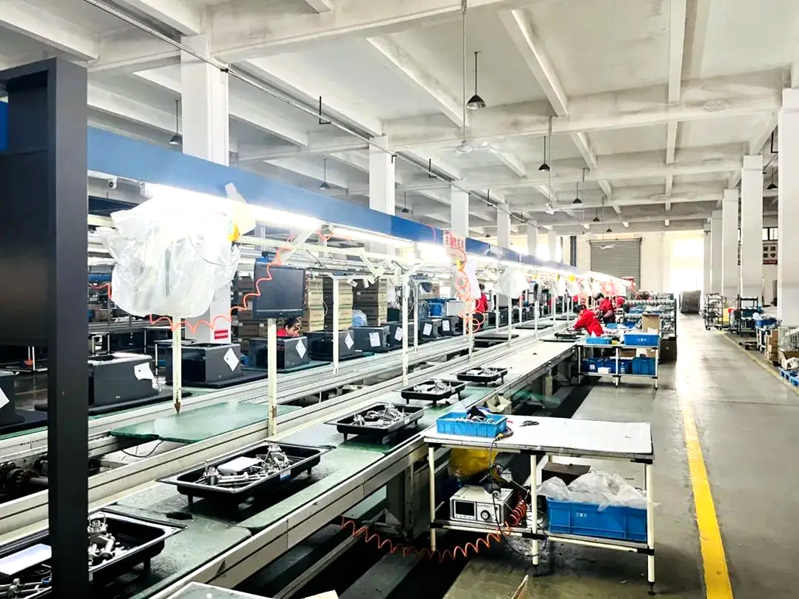

Gas Hob Assembly Line

This gas hob assembly line is a dedicated pipeline for kitchen appliance manufacturing. It is designed for complete assembly of household gas hobs (gas cooktops), compatible with built-in and desktop single-burner & double-burner gas stoves. It covers full workflow: panel pre-assembly, burner fitting, valve body, solenoid valve, flame failure protection parts, igniter, glass panel and support installation, air tightness test, power test, function inspection, appearance check and finished product offloading. It serves kitchen appliance manufacturers for standardized mass production.

The whole gas hob production line adopts up & down circulating double speed chain conveyor structure, with high-strength tooling pallets as load-bearing units. The upper layer is for product assembly, while the lower layer realizes automatic empty pallet return without manual pallet transfer, saving workshop space greatly. The line automatically completes workpiece transportation, precise positioning, station buffering and sequential transfer. Each workstation works independently and interlocks as a whole. The conveying speed can be adjusted flexibly according to production capacity. This gas hob assembly line supports mixed production of multiple hob models without modifying main frame, suitable for multi-variety, small & medium batch production. Each workstation is fitted with positioning jigs to fix hob housing, equipped with pneumatic tools for fast screw tightening, facilitating assembly of internal valves, ignition components and pipelines. It solves workpiece shifting issues, reduces pipeline connection errors and missing screws and improves assembly stability.

The line frame adopts thickened aluminum alloy profile structure, sturdy and stable for long-time continuous operation. Long strip lighting is installed above each station, with reserved space for work instruction boards. Pneumatic quick connectors and coiled air hoses are equipped for convenient use of air screwdrivers. Multiple emergency stop buttons and audible & visual alarm devices are equipped, with overload protection, jam protection and safety interlock to guarantee operator safety. Material is delivered nearby to meet 5S management standards.

The line is equipped with industrial PLC centralized control system and touch screen terminal. It supports full line start-stop, individual workstation control, beat adjustment, real-time status monitoring and fault diagnosis. The system records workpiece transfer and process data to realize full assembly traceability. It can locate faults like pallet jamming or positioning error for quick maintenance and reduce downtime.

Compared with discrete fixed bench assembly, this gas hob assembly line realizes continuous flow production along double speed chain. Workers are assigned fixed workstations and single process, cutting redundant workpiece handling and unnecessary movement, lowering labor intensity. Refined process division and unified standards reduce missing valve bodies, improperly installed pipelines and omitted flame protection parts, improving finished product yield. Thanks to the up-down double-layer circulating design with automatic pallet return, the line features high space utilization, and can complete pre-assembly, main assembly, component installation, air tightness test, function test and finished product delivery within limited workshop space.

This gas hob production line is mainly for household gas hob / gas cooktop assembly and supports mixed production of built-in and desktop models. With modular split design, it is easy to install and commission with low maintenance cost. Customers can expand workstations and add auto screw locking machines, torque tools or air tightness test stations for capacity expansion and process upgrade. It is stable and practical dedicated assembly line for kitchen appliance manufacturers.

Core Equipment Parameters Applicable workpiece weight: 3KG–15KG Compatible products: built-in / desktop gas hob, gas cooktop, single & double burner gas stove Adjustable conveying speed: 0.18–2.4m/min Positioning accuracy: ±0.5mm Up & down circulating double speed chain with automatic empty pallet return Positioning jigs & pneumatic tool ports at each station PLC centralized control, full line fault self-check Supports 24h continuous operation, multi-model mixed production
