Electric Water Heater Production Line

1. Overview of Production Line & Analysis of On-site Photos

Water heaters are essential basic plumbing and heating equipment for residential buildings and commercial projects. The mainstream product categories in the industry include gas water heaters, instant electric water heaters, air-source heat pump water heaters, and storage electric water heaters. Among them, storage electric water heaters hold a dominant share in the residential market for their stable operation, constant water pressure and wide installation adaptability. They are core hot-water equipment for mass industrial production.

This electric water heater production line is a dedicated assembly line for cylindrical storage electric water heaters. The whole set of electric water heater production line equipment adopts a modular, paced conveying design. It supports flexible model changeover for multi-specification products, catering to large-scale standardized mass production as well as long-tail order scenarios such as residential renovation, bulk project procurement and small-batch customization.

The electric water heater production line consists of a ground circulating main conveyor, standardized workstations, special assembly jigs and fixtures, centralized electrical control system, overhead material conveying gallery, steel structure maintenance platform and a complete overhead piping system. The overall structure can be fully illustrated by the two on-site photos, with clear equipment hierarchy and functional zoning.

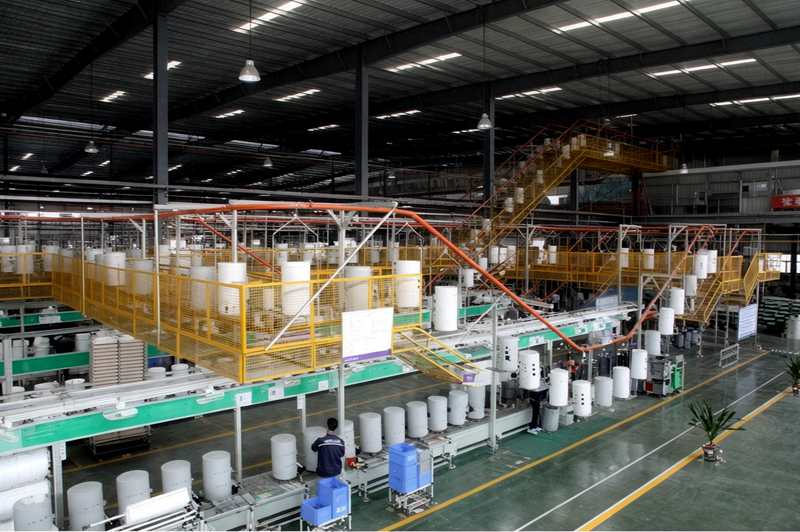

The first photo shows a full view of the electric water heater production line. At its core lies a continuous circulating assembly conveyor. White cylindrical inner tanks of water heaters flow orderly along the line to complete continuous assembly at fixed takt time. Standardized workstations are evenly arranged on both sides of the line, where operators perform pre-assembly, component fitting and inspection following process specifications. The overhead gallery with yellow safety guardrails shown in the upper part of the image serves as an auxiliary structure for the entire electric water heater production line. It is mainly used for overhead transfer of spare parts, inspection and routine maintenance of top-mounted equipment, ensuring continuous operation of the main production line.

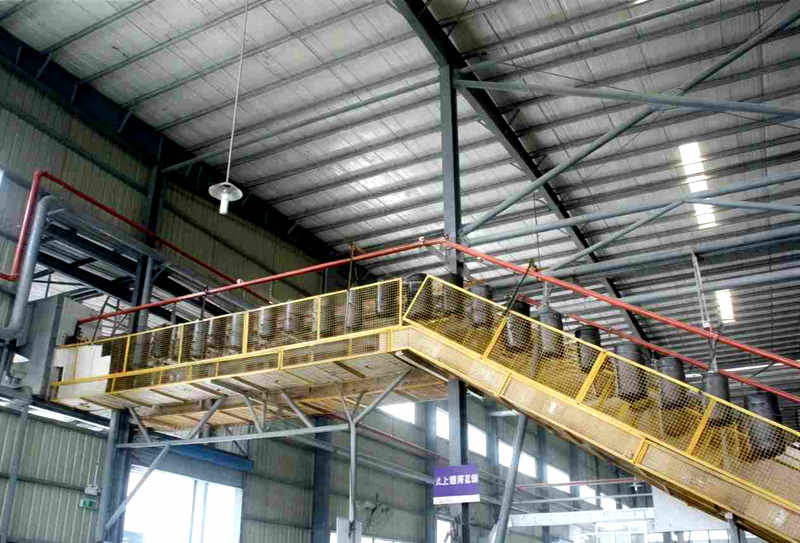

The second photo is a close-up of the overhead supporting structure of the production line. It displays the industrial steel walkway, safety guardrails and overhead conveying pipes supporting the electric water heater production line. Custom-built according to workshop dimensions, this overhead load-bearing structure physically separates material transfer from ground assembly zones without occupying working space on the main line of the electric water heater production line. It resolves common issues of traditional production lines including material accumulation, aisle congestion and process interference, greatly improving workshop space utilization and production smoothness.

The whole electric water heater production line adopts linked speed regulation control. The takt time of each workstation is synchronously controllable. Operators can switch between mass production mode and flexible customization mode based on client output targets. The equipment delivers good versatility and stability to meet long-term industrial production requirements.

2. Core Assembly Processes of the Electric Water Heater Production Line

Workstations of this electric water heater production line are laid out strictly in accordance with manufacturing procedures of storage electric water heaters. It realizes integrated full-process assembly from blank feeding to finished goods warehousing. The core workflow is standardized and traceable, divided into six key stages:

1. Inner Tank Pre-treatment & Pre-assembly: Feed and position the inner tank shell, re-inspect weld seams, pre-test tightness and conduct insulation cleaning. Pre-install basic fittings including water inlet/outlet connectors, fixing brackets and sealing bases to finalize the inner tank structure.
2. Assembly of Core Inner Tank Components: Standard installation of heating elements, anti-corrosion magnesium rods, temperature sensors, temperature control assemblies and various sealing parts to guarantee equipment tightness and operational stability, and prevent later risks such as water leakage and abnormal temperature measurement.
3. Insulation Layer & Outer Shell Assembly: Precisely nest the inner tank assembly into the outer shell, fasten end caps and fasteners. Apply high-pressure polyurethane foaming to form an integrated insulation layer, reducing heat loss and maintaining the thermal insulation performance of stored water.
4. Electrical Control System Assembly: Standard installation and neat wiring of control panels, power harnesses, earth leakage protection devices, thermal protectors and other electrical components. Implement insulation protection to comply with electrical safety regulations.
5. Overall Unit Performance Testing: As the core quality control workstation on the electric water heater production line, it sequentially conducts hydrostatic pressure testing, power-on trial operation, temperature control function verification, earth leakage and earthing safety inspection. Non-conforming units are marked and taken offline for rework to strictly control factory quality.
6. Visual Re-inspection & Finished Product Packing: Inspect and clean cosmetic defects of finished units. Affix nameplates and parameter labels. After model information verification, seal and pack products for transfer and warehousing to complete finished product delivery.

3. Customizable Technical Parameters of the Electric Water Heater Production Line

This electric water heater production line is non-standard custom industrial equipment. Comprehensive adaptation and modification can be implemented according to customer production capacity, workshop dimensions and product specifications. The main customizable parameters are as follows:

1. Applicable Product Specifications: Capable of mass-producing mainstream household storage electric water heaters of 40L, 50L, 60L, 80L and 100L. It supports quick changeover for tanks of different diameters and lengths. It can be expanded to produce small commercial hot water tanks and air-source heat pump pressure-bearing water tanks.
2. Production Takt Time: The operating takt time of the electric water heater production line can be steplessly adjusted from 3 to 12 minutes per unit, freely set according to capacity planning to accommodate different production volume requirements.
3. Production Line Layout: Supports multiple layouts including straight, U-shaped and looped configurations. Total line length, workstation quantity and spacing can be customized based on actual workshop dimensions to fit various factory floor conditions.
4. Customization of Supporting Structures: Dimensions, load capacity and protection standards of overhead conveying galleries and steel maintenance platforms can be customized on demand, adapting to different workshop ceiling heights and piping layouts.
5. Automation Configuration: Tiered configuration available. The basic version is a manually assisted electric water heater production line. The upgraded version can be equipped with automation modules including automatic screw fastening, automatic foaming, online leak detection and intelligent inspection to improve production accuracy and efficiency.
6. Expandability & Compatibility: The whole line adopts a modular design with reserved standard expansion interfaces. It supports later equipment upgrade, new function addition and adaptation to product iteration, featuring strong compatibility for long-term production.

Overall, this series of electric water heater production lines is suitable for manufacturing hot water equipment for household, engineering and commercial scenarios. With mature structures, standardized processes and high customizability, it is core dedicated equipment for large-scale, standardized and flexible production of storage electric water heaters.
