Heater Assembly Line

1. Overview of Production Line & On-site Photo Analysis

Indoor heating appliances are an important category in home appliance manufacturing, including oil-filled radiators, convection heaters, fan heaters and electric film heaters. Oil-filled radiators feature stable heating, large heat dissipation area and constant temperature performance. Widely used in bedrooms, offices, apartments and export orders, they are mainstream heating appliances.

This heater assembly line is dedicated to oil-filled radiator assembly. The whole set of heater production line equipment adopts a slat chain conveyor structure, built with modular paced conveying architecture. It supports flexible model changeover for multiple specifications, suitable for large-volume mass production as well as long-tail orders including export, project procurement and small-batch customization.

The heater production line consists of slat chain main conveyor, standardized workstations, custom assembly jigs, centralized electrical control system, workstation pneumatic pipeline system, aluminum profile support frames and industrial control display units. The on-site photo fully shows the main structure of this heater assembly line.

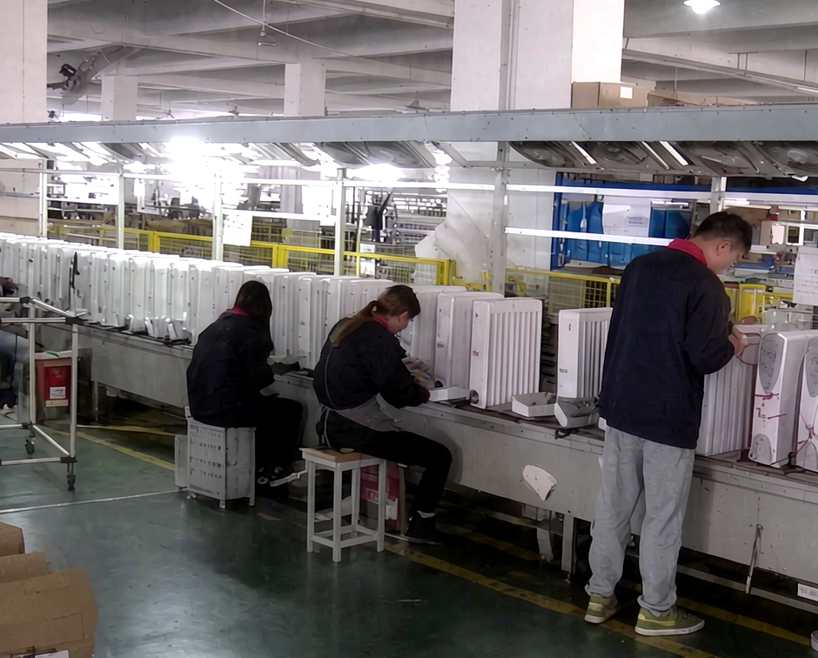

The photo shows a full view of the heater production line. The core equipment is the slat chain assembly conveyor, the main body of this heater assembly line. Workpieces are placed directly on slat chains and move synchronously along the line to complete continuous assembly at fixed takt time. The slat chain has heavy load capacity, ideal for heavy home appliances such as oil-filled radiators. It supports workpiece blocking and positioning at each station without stopping the whole conveyor.

Sitting and standing mixed workstations are arranged on one side of the conveyor. Operators complete fin assembly, wiring and unit testing according to process specifications. Lighting and dust shields are mounted above the line. Aluminum profile cable racks route power and signal cables. Pneumatic hoses and air connectors under stations supply power for assembly tools. Industrial control displays show process parameters, production counts and defect statistics for visualized production management.

The whole heater assembly line adopts linked speed regulation. Workpieces on slat chain can be accurately blocked and positioned at each workstation. The takt time of every station is synchronously controllable. Manufacturers can switch between mass production and flexible model changeover according to production targets. The equipment has good versatility and fits long-term stable production for heater factories.

2. Core Assembly Processes of the Heater Production Line

Workstations of this heater assembly line follow the manufacturing process of oil-filled radiators, built upon slat chain conveying system. It supports full-process integrated assembly from radiator fin assembly to finished product warehousing. All workflows are standardized and traceable, divided into six key stages:

1. Radiator Fin Pre-assembly: Feed oil radiator fins onto slat chain. Assemble fins and sealing parts, check sealing performance, pre-install base brackets.
2. Core Component Assembly: Install heating tube, thermostat, overheat protection device and power cord. Fix oil storage cavity and isolate electrical components for safety.
3. Housing & Control Panel Assembly: Mount outer housing and cover plates, install control panel, knobs and indicator lights. Fix cable protective sleeves.
4. Internal Wiring Assembly: Route and connect main power harness and thermostat signal wires. Bind harnesses following process standards and apply insulation protection to avoid short-circuit risks.
5. Overall Performance Testing: This is the core quality control station of the heater production line. Workpieces move into testing station with slat chain. Tests include power-on test, temperature rise test, thermal protection test, leakage inspection and hipot test. Non-conforming products are marked offline for rework.
6. Visual Re-inspection & Finished Packing: Inspect cosmetic defects and clean products, attach nameplates and safety labels. Remove qualified units from the line, pack cartons and transfer to warehouse.

3. Customizable Technical Parameters of the Heater Production Line

This heater production line is non-standard custom industrial equipment adopting slat chain structure. It can be modified according to customer capacity, workshop dimensions and product specifications. Main customizable parameters:

1. Applicable Product Specifications: Mass produce oil-filled radiators with 10/11/13/15 fins. Support quick changeover for different fin quantities and panel styles. Expandable for convection heaters and vertical fan heaters.
2. Production Takt Time: The takt time of the heater assembly line can be steplessly adjusted from 2 to 7 minutes per unit. Freely set based on capacity planning. The slat chain supports independent workpiece blocking and positioning at each station.
3. Production Line Layout: Straight, U-shaped and loop layouts available. Total line length, workstation quantity and spacing customized for workshop space. Slat width customized by product size and weight.
4. Customization of Supporting Structures: Dimensions of slat chain frame, chain slats, workstation supports, cable racks, pneumatic pipelines and control brackets can all be customized to match workshop height and air supply layout.
5. Automation Configuration: Tiered configuration options. The basic version is manually assisted slat chain heater assembly line. The upgraded version can add automatic screw fasteners, press-fit jigs, online hipot testers and scanning modules to improve assembly accuracy and efficiency.
6. Expandability & Compatibility: Modular design with reserved expansion interfaces for electrical and tooling system. Support later equipment upgrade and new workstation addition, adapting to product iteration with strong long-term compatibility.

Overall, this series of heater production line / heater assembly line adopts mature slat chain conveying solution with high load capacity. Suitable for household, export and commercial heater manufacturing. Featuring mature structure, standardized processes and high customizability, it is core dedicated equipment for large-scale, standardized and flexible oil-filled radiator production.
