1. Overview of the Gas Water Heater Production Line & On-site Analysis
Household gas water heaters are core kitchen and bathroom appliances, valued for instant hot water, low energy consumption, and stable output. They are widely used in commercial apartments, residential buildings, and export projects, ensuring steady market demand.
This gas water heater assembly line is dedicated to the complete unit assembly of gas water heaters. The entire gas water heater production line utilizes a double-speed chain conveyor system equipped with custom tooling pallets for stable workpiece handling. Designed with a modular, paced conveying architecture, it supports flexible changeover for multiple models. It meets the requirements for large-scale standardized mass production, as well as long-tail orders including export shipments, bulk project procurement, and small-batch customization.

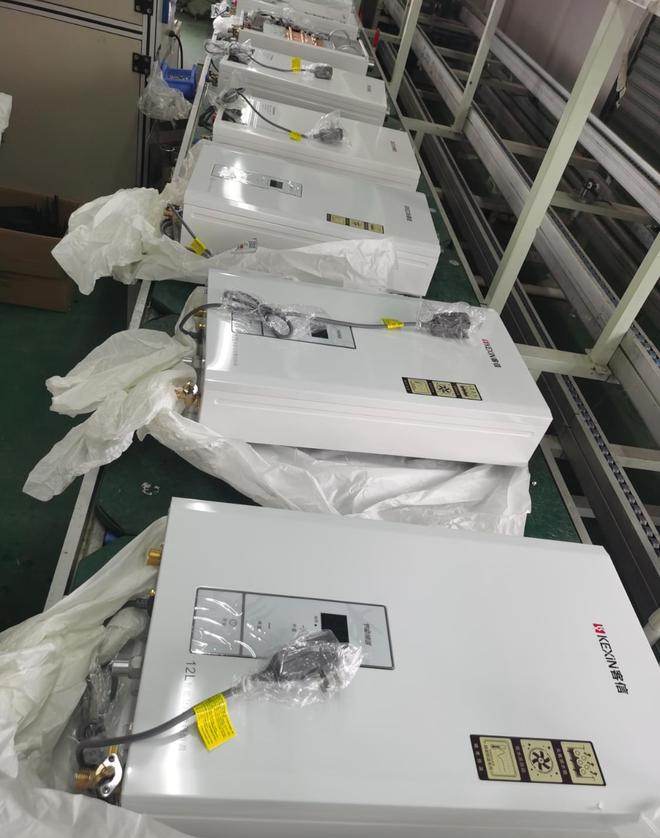

The gas water heater production line consists of a double-speed chain main conveyor, circulating tooling pallets, standardized workstations, custom assembly jigs and fixtures, a centralized electrical control system, a workstation pneumatic pipeline system, aluminum profile support frames, and supporting industrial control displays. The on-site photo fully demonstrates the main structure of this gas water heater assembly line.
2. Core Assembly Processes of the Gas Water Heater Production Line
Workstations on this gas water heater assembly line are strictly laid out according to manufacturing procedures. Built on a double-speed chain and tooling pallet handling system, it delivers full-process integrated assembly from casing feeding to finished product warehousing. All workflows are standardized and traceable, divided into six key stages:
- Casing Pre-assembly: Feed the outer casing and place it on tooling pallets for positioning. Inspect appearance, pre-install mounting brackets, remove sheet metal burrs, and complete insulation protection.
- Core Component Assembly: Install the heat exchanger, burner, fan assembly, water-gas linkage valve, and main controller. Fix gas and water pipelines and complete sealing protection for pipe joints.
- Gas & Water Pipeline Assembly: Mount water inlet/outlet connectors, gas inlet connectors, and flue exhaust connectors. Install water flow sensors and temperature sensors, complete pipeline fixing, and perform pre-sealing inspection.
- Internal Wiring Assembly: Route and connect main power harnesses, fan cables, temperature signal wires, and solenoid valve wires. Bind and fix harnesses according to process standards and apply insulation protection to prevent short-circuit risks.
- Overall Unit Performance Testing: This is the core quality control station of the gas water heater production line. Tooling pallets carry workpieces into the testing station for air-tightness tests, water feeding tests, ignition combustion tests, temperature control verification, and leakage protection tests. Non-conforming products are marked and routed offline for rework.
- Visual Re-inspection & Finished Product Packing: Inspect and clean cosmetic defects on finished units, attach nameplates, parameter labels, safety certification marks (e.g., 3C/CE), and warning labels. After passing inspection, remove products from tooling pallets, pack and seal cartons, then transfer to the warehouse.
3. Customizable Technical Parameters of the Gas Water Heater Production Line
This gas water heater production line is non-standard custom industrial equipment adopting a double-speed chain and tooling pallet structure. It can be modified according to customer production capacity, workshop dimensions, and product specifications. Main customizable parameters:
- Applicable Product Specs: Mass produce mainstream forced exhaust gas water heaters (power vent type) of 10L, 12L, 13L, 16L. Support quick model changeover for different casing sizes and control schemes. Expandable for balanced gas water heaters and similar hot water equipment.
- Production Takt Time: The takt time of the gas water heater assembly line can be infinitely adjusted from 2 to 6 minutes per unit. Freely set based on capacity planning to satisfy different production volumes. The double-speed chain supports independent workpiece blocking and positioning at each station.
- Production Line Layout: Multiple layouts available including straight, U-shaped, and looped double-speed chain configurations. Total line length, workstation quantity, and spacing are customized to fit actual workshop dimensions. Tooling pallet size is tailored to product outline and weight.
- Customization of Supporting Structures: Dimensions of double-speed chain frame, tooling pallets, workstation supports, aluminum profile cable racks, pneumatic pipelines, and industrial control brackets can all be customized to match workshop ceiling height and air supply layout.
- Automation Configuration: Tiered configuration options. The basic version is a manually assisted double-speed chain gas water heater assembly line. The upgraded version can integrate automatic screw fastening machines, automatic press-fit jigs, online air-tightness testers, and automatic data scanning modules to improve assembly accuracy and efficiency.
- Expandability & Compatibility: The whole line adopts modular design with reserved standard expansion interfaces for the electrical system and tooling fixtures. It supports later equipment upgrades, new workstation additions, and product iteration, delivering strong long-term compatibility.
