Microwave oven assembly line

1. Overview of Production Line & On-site Photo Analysis

Kitchen small home appliances are core segments in the home appliance manufacturing industry, covering microwave ovens, ovens, air fryers, steam ovens and more. Microwave ovens feature fast heating, compact footprint and simple operation. Widely used in residential kitchens, apartments and catering projects, they have strong market demand and are key products for mass manufacturing.

This microwave oven assembly line is dedicated to countertop microwave oven assembly. The whole set of microwave oven production line equipment adopts a double-speed chain conveyor system equipped with special tooling pallets for workpiece carrying. Designed with modular paced conveying architecture, it supports flexible changeover for multiple product models. It meets requirements for large-scale standardized mass production, as well as long-tail orders including export shipments, bulk project procurement and small-batch customization.

The microwave oven production line consists of double-speed chain main conveyor, circulating tooling pallets, standardized workstations, custom assembly jigs and fixtures, centralized electrical control system, workstation pneumatic pipeline system, aluminum profile support frames and supporting industrial control display units. The on-site photo fully shows the main structure of this microwave oven assembly line.

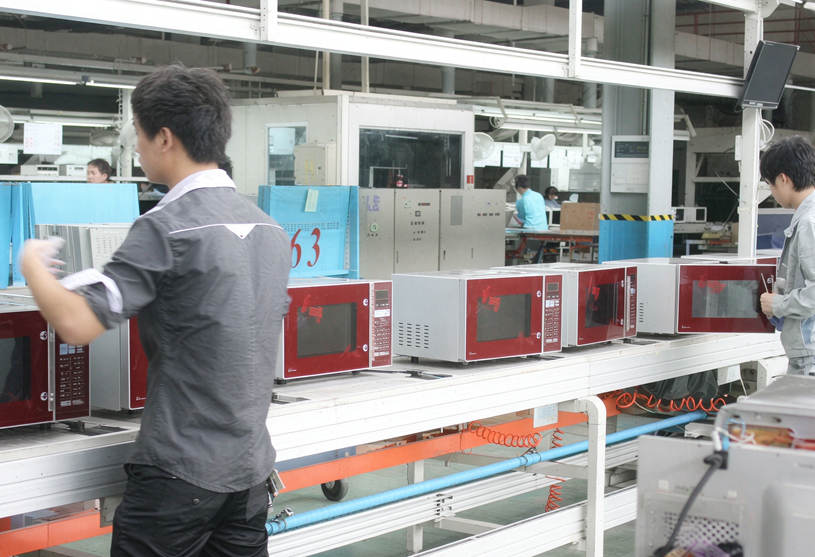

The photo captures a full view of the microwave oven production line. The core equipment is the double-speed chain assembly conveyor, the main body of this microwave oven assembly line. Circulating tooling pallets run on the conveyor. Semi-finished microwave ovens are fixed on the pallets and move synchronously along the line to complete continuous assembly at fixed takt time. The double-speed chain design enables workpiece blocking and precise positioning at individual stations, so assembly work can be carried out without stopping the entire line.

Standardized workstations are evenly arranged on both sides of the conveyor. Operators perform component assembly, wiring and unit testing following process specifications. Aluminum profile cable racks are installed above the line to route power and signal cables. Pneumatic hoses and air connectors are integrated under workstations to supply power for assembly tools. Industrial monitors beside the line display process parameters, production counts and defect statistics to realize visualized production management.

The whole microwave oven assembly line adopts linked speed regulation. Tooling pallets can be accurately blocked and positioned at each workstation. The takt time of every station is synchronously controllable. Manufacturers can switch between mass production mode and flexible model changeover mode according to production targets. The equipment has good versatility and is suitable for long-term stable production in small home appliance factories.

2. Core Assembly Processes of the Microwave Oven Production Line

Workstations of this microwave oven assembly line are laid out strictly in accordance with countertop microwave manufacturing procedures. Built on double-speed chain plus tooling pallet handling system, it delivers full-process integrated assembly from sheet metal shell feeding to finished product warehousing. All workflows are standardized and traceable, divided into six key stages:

1. Shell Pre-assembly: Feed sheet metal shell and place it on tooling pallets for positioning. Inspect shell appearance, pre-install bottom plates, support feet and fixing brackets, remove sheet metal burrs and complete insulation protection.
2. Core Component Assembly: Install magnetron, high-voltage transformer, high-voltage capacitor and cooling fan inside the shell. Fix the cavity assembly and implement insulation isolation for high-voltage components to guarantee safety of high-voltage circuits.
3. Door & Control Panel Assembly: Mount oven door assembly, door seal and safety interlock switches. Install control panel, membrane keypad and display screen, and fasten all control components.
4. Internal Wiring Assembly: Route and connect main power harnesses, high-voltage cables and control signal wires. Bind and fix harnesses according to process standards and apply insulation protection to avoid short-circuit risks.
5. Overall Unit Performance Testing: This is the core quality control station of the microwave oven production line. Tooling pallets carry workpieces into the testing station. Tests include power-on function test, microwave leakage test, door interlock safety test, temperature control verification and noise inspection. Non-conforming products are marked and taken offline for rework.
6. Visual Re-inspection & Finished Product Packing: Inspect and clean cosmetic defects on finished units, attach nameplates, parameter labels and safety warning marks. After passing inspection, remove products from tooling pallets, pack and seal the cartons, then transfer to warehouse.

3. Customizable Technical Parameters of the Microwave Oven Production Line

This microwave oven production line is non-standard custom industrial equipment adopting double-speed chain and tooling pallet structure. It can be modified according to customer production capacity, workshop dimensions and product specifications. Main customizable parameters:

1. Applicable Product Specifications: Mass produce mainstream countertop microwave ovens of 20L, 23L, 25L, 28L. Support quick model changeover for products with different cavity sizes and panel styles. Expandable for combi steam-grill microwave ovens and similar countertop kitchen appliances.
2. Production Takt Time: The takt time of the microwave oven assembly line can be steplessly adjusted from 2 to 8 minutes per unit. It can be freely set based on capacity planning to satisfy different production volumes. The double-speed chain supports independent workpiece blocking and positioning at each station.
3. Production Line Layout: Multiple layouts available including straight, U-shaped and looped double-speed chain layout. Total line length, workstation quantity and spacing are customized to fit actual workshop dimensions. Tooling pallet size is customized according to product outline.
4. Customization of Supporting Structures: Dimensions of double-speed chain frame, tooling pallets, workstation supports, aluminum profile cable racks, pneumatic pipelines and industrial control brackets can all be customized to match workshop ceiling height and air supply layout.
5. Automation Configuration: Tiered configuration options. The basic version is a manually assisted double-speed chain microwave oven assembly line. The upgraded version can be equipped with automatic screw fastening machines, automatic press-fit jigs, online microwave leakage detectors and automatic data scanning modules to improve assembly accuracy and efficiency.
6. Expandability & Compatibility: The whole line adopts modular design with reserved standard expansion interfaces for electrical system and tooling fixtures. It supports later equipment upgrade, new workstation addition and product iteration, delivering strong long-term compatibility.

Overall, this series of microwave oven production line / microwave oven assembly line adopts mature double-speed chain and tooling pallet conveying solution. It is suitable for manufacturing microwave ovens for household, export and commercial scenarios. Featuring mature structure, standardized processes and high customizability, it is core dedicated equipment for large-scale, standardized and flexible production of countertop microwave ovens.
